UltraMaxx® Fusion-Welded Vinyl Windows


Ultra-Premium, Custom-Made Windows
There’s a unique feeling of confidence that comes from knowing you have chosen UltraMaxx® Windows from Alside. They are not only beautiful; their heavy-gauge, fusion-welded vinyl sash and mainframe structure makes them incredibly strong and durable. Years of operation and harsh weather won’t diminish their quality or performance. And they offer superior resistance to the elements and air and water infiltration.
This product is available in our Eastern distribution area.
Features and Benefits
- Fusion-welded frame and sashes provide superior structural strength and create a permanent barrier against air and moisture infiltration.
- The multi-chamber design of the UltraMaxx Window helps trap dead air to produce an effective insulating barrier.
- Quad 4 weatherstripping at the header and sill adds greater protection from the elements.
- Heavy-duty SteelForce™ reinforcement is placed within the sashes at the meeting rails to ensure extra protection at this very critical and often used location.
- The Intercept Spacer System helps reduce conducted heat loss through the window and is better at retaining insulating gas than many conventional designs.
- Triple-barrier weatherstripping between the sash and jamb for superior protection from air and water infiltration.
- Full-capture sill channels water to the exterior – keeping your windows free from accumulation of water and debris.
Insulated Glass Packages
- Optional ClimaTech Insulated Glass packages available.
- Consult your window professional for the optimal glass package required for your home and climate zone.
Window Styles
Double Hung
-
- Fusion-welded sash and mainframe structure for added strength and rigidity.
- Interlock at sash meeting rails creates a super-tight seal against air infiltration, providing security, comfort and well-being.
- Exclusive triple lift rails provide strength and stability for easy operation.
- Drop-in glazing provides energy efficiency as well as interior aesthetic appeal.
- Triple-barrier weatherstripping for superior protection from air and water infiltration.
- Constant force balance system eliminates sash cords, weights and pulleys and provides easy fingertip operation.
- Hidden screen track for clean lines and added beauty.
Sliding Windows
-
- Fusion-welded sash and mainframe structure for increased strength and rigidity.
- Tough, extra-thick extrusion walls provide the ultimate in welding strength.
- Hidden screen track produces clean lines and added beauty.
- Double-barrier weatherstripping for superior protection from air and water infiltration.
- Nylon-encased dual brass roller system.
- Theft deterrent locks.
Casement Windows
-
- Step-down frame with compression-type inner bulb seal provides a tight seal during inclement weather.
- State-of-the-art hinge system offers multi-directional ventilation and allows sash cleaning from inside the home.
- Positive crank mechanism allows easy operation when opening and closing the sash.
- Multi-point locking system ensures a tight fit and added security.
- Multiple lite configurations available in a single mainframe.
Awning Windows
-
- Beveled exterior sash design gives the window the appearance of a larger glass area with an attractive slimline look.
- Heavy-duty, state-of-the-art hinge system provides easy operation from inside the home.
- A dual locking system on each side of the window.
- Multiple lite configurations available in a single mainframe.
- Combine awning and fixed-lite windows to add striking beauty and increased visibility.
Bay and Bow Windows
-
- 1-1/4″ furniture grade veneer is standard in the construction of head, seatboard and jambs.
- Head and seatboard is available in oak or birch veneer finishes and are ready for painting or staining.
- 3″ pre-insulated seatboard option means a more comfortable home and helps increase energy savings.
- Slimline reinforced mullion design provides superior strength and support for the selected components.
- Bay and bow windows are available in white or beige with optional rich maple, light oak, dark oak, foxwood or cherry woodgrain interior finishes.
- Exterior roof system available with optional copper or painted aluminum roof clad kits.
Garden Window
-
- Fully welded mainframe for strength and stability.
- Top sloped insulating glass panel is tempered for improved safety and unit integrity.
- Equal sightlines between picture units and operating sashes.
- Twin-sealing, fully screened, operating casements improves weather protection.
- Multi-point locking system for a tighter seal and added security.
- Clear 1″ insulated glass unit provides all-weather protection.
Gallery

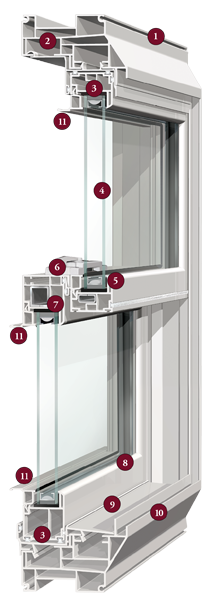

Cross Section
- Vinyl frame and sashes will never chip, peel, crack or warp. Made with premium raw materials, the vinyl color is formulated throughout so the beautiful luster lasts.
- Multi-chambered sash and mainframe create insulating air spaces for thermal efficiency.
- Quad 4 weather stripping at the header and sill adds greater protection from the elements.
- Insulated glass unit featuring double-strength glass with optimal air space improves year-round performance.
- Intercept Warm-Edge Spacer System maximizes thermal efficiency and the life of the insulated glass unit.
- Interlock at sash meeting rails creates a super-tight seal against air infiltration, providing security, comfort and well-being.
- Steel reinforcement adds strength at the meeting rails.
- Drop-in glazing provides energy efficiency as well as interior aesthetic appeal.
- Full-capture sill enhances protection from the elements.
- Hidden screen track for clean lines and added beauty.
- Exclusive triple lift rails provide strength and stability for easy operation.

Gallery
Exterior Colors
Interior Colors
*Extruded solid color.
¥ White Woodgrain is available with a beige base only.
We recommend you make final color selections using actual product samples. All colors may not be available in all markets.
DECORATIVE OPTIONS
Grid Patterns
Grid Profiles
Simulated Divided Lites
V-Grooved Glass
Obscure glass options are also available.
